Si-1300-7
Fully Electric Injection Molding Machine, Si-7 Series
Si-1300-6 is a new model in the Si-7 series, having an ejection stroke long enough for deep moldings.
- Photographs in the catalog include optional devices.
- For the improvement of the product, the appearance and specification are subject to change without notice.

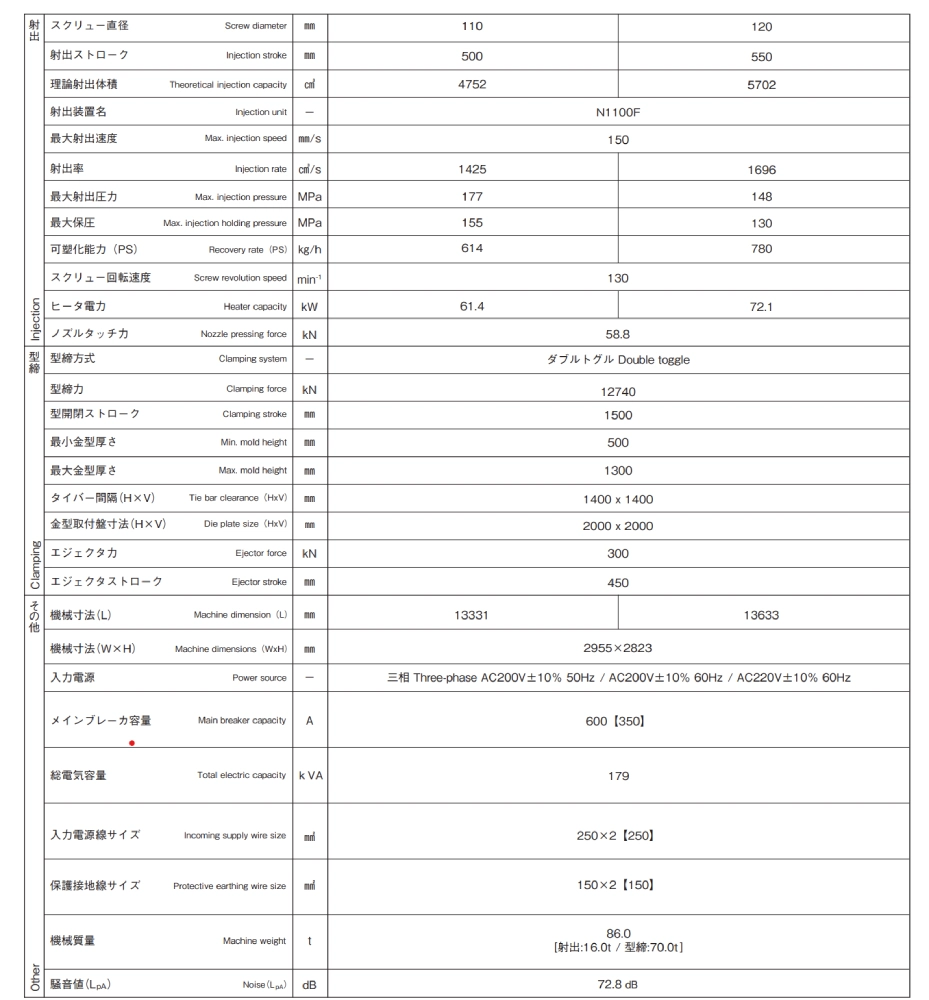

- Specifications are expressed in SI units : 1MPa=10.2kgf/cm2, 1kN=0.102tonf
- Maximum injection pressure is a maximum settable value.
- Maximum injection pressure may be limited by the molding conditions and the cycle time.
- Maximum injection speed is calculated values. This value may be limited by the setting of injecting pressures.
- *1 By changing the heat barrel, higher pressure setting available.
- *2 Only wear resistant specification is available for the screw and heat barrel of FH400E, H450E (φ40).
